Articulated Truck Chassis Dimensions

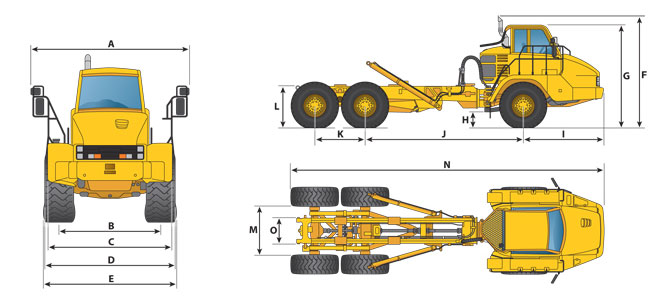

Chassis dimensions for the Cat® 725, 730, 735, and 740 articulated trucks.

Cat 725
	SWB	LWB	ELWB		SWB	LWB	ELWB		SWB	LWB	ELWB
A	3645	3645	3645	F	3751	3751	3751	K	1700	1700	1700
B	2275	2275	2275	G	3440	3440	3440	L	1643	1643	1643
C	2800	2800	2800	H	495	495	495	M	1626	1626	1626
D	2877	2877	2877	I	2721	2721	2721	N	9068	10554	••
E	2950	2950	2950	J	3818	5305	••	O	835	835	N/A

Cat 730
	SWB	LWB			SWB	LWB			SWB	LWB
A	3645	3645		F	3751	3751		K	1700	1700
B	2275	2275		G	3440	3440		L	1643	1643
C	2800	2800		H	495	495		M	1626	1626
D	2877	2877		I	2721	2721		N	9068	10554
E	2950	2950		J	3818	5305		O	835	835

Cat 735
	SWB	LWB	ELWB		SWB	LWB	ELWB		SWB	LWB	ELWB
A	3832	3832	3832	F	4006	4006	4006	K	1966	1966	1966
B	2687	2687	2687	G	3703	3703	3703	L	1573	1573	1573
C	3370	3370	3370	H	534	534	534	M	2021	2021	2021
D	3353	3353	3353	I	3221	3221	3221	N	10301	11856	••
E	3434	3434	3434	J	4244	5800	••	O	1031	1031	N/A

Cat 740
	SWB	LWB			SWB	LWB			SWB	LWB
A	3832	3832		F	4049	4049		K	1966	1966
B	2687	2687		G	3745	3745		L	1626	1626
C	3370	3370		H	577	577		M	1944	1944
D	3430	3430		I	3221	3221		N	10355	11911
E	3520	3520		J	4244	5800		O	1031	1031

SWB: Standard Wheelbase LWB: Long Wheelbase ELWB: Extra Long Wheelbase
•• Chassis length can be defined by customer requirements.



Note: pictures are for illustration purposes only.
