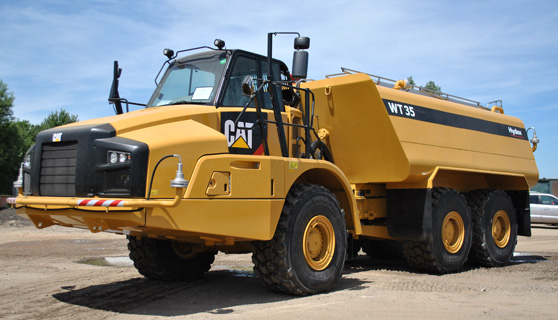

| Hydex Articulated Water Tank Trucks : WT25, WT30, WT35 and WT40 |
|
 |
 |
 |
|
The Hydex WT range is a complete line of water trucks from Articulated Truck Solutions. More than just a water tank, it’s a water truck; an integrated machine designed for dust suppression on the most demanding mining, quarrying and construction sites.
Featuring the Hydex patent pending baffle valves in both transverse and longitudinal directions offer vastly superior stability helping to eliminate truck rollover, making the Hydex WT one of the safest water truck on the market today.
Supplied on a new CAT® chassis directly from our facility close to the world-wide Caterpillar® ADT factory or, for used equipment, it can be fitted at your local CAT® dealer with the supervision of one of our own engineers. So whichever way you buy your water truck, you get a complete machine to factory standards with the parts and service you expect.
Standard Tank Specifications
- 5000 US gal / 18,900ltr through to 8000 US gal / 30,300ltr tanks capacity
- Epoxy coating
- 1500 GPM hydraulic driven centrifugal pump.
- Rear spray bar to include up to three fully adjustable fan spray heads with individual cab mounted hydraulic controls.
- Two spray heads mounted on front of tank for side sprays with individual cab controls.
- Self loading system which allows for suction from a water supply.
- Water level indicator in cab
- Splash guard on front and rear of tank to protect cab/rear area
- CE marked if required
|
|

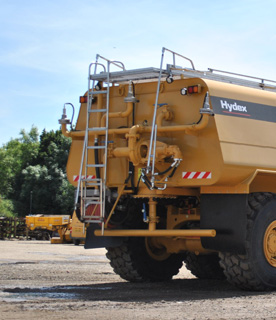

Spray Equipment
- Remote controlled turret water cannon, with the control panel mounted within the cab.
- Full width gravity bar with in cab control.
- Hose Reel with 100’ x 1 1/2” hose including straight nozzle.
- Fire Eater system; includes built in Stainless Steel foam tank, and adjustable nozzle for water and foam.
- Rear spray bar with staggered fan sprays.
- Extensive range of options available: side sprays, hose reels, water cannons, gravity dumps.
|
| |
 Why choose a Hydex Water Tank Truck?
What are Hydex baffle valves?
What is a Hydex Water Tank Truck?
 Hydex Water Tank Truck specifications
 See the Hydex Water Tank Truck in action
 Need more info or prices?
|
|
 Hydex WT range spec sheet
|
Note: pictures are for illustration purposes only.
